The Auto Power Factor Controller from Giga Enerlogic is designed to automatically maintain optimal power factor levels in electrical systems. It helps reduce reactive power losses, avoid power factor penalties, and improve overall energy efficiency in industrial and commercial installations.

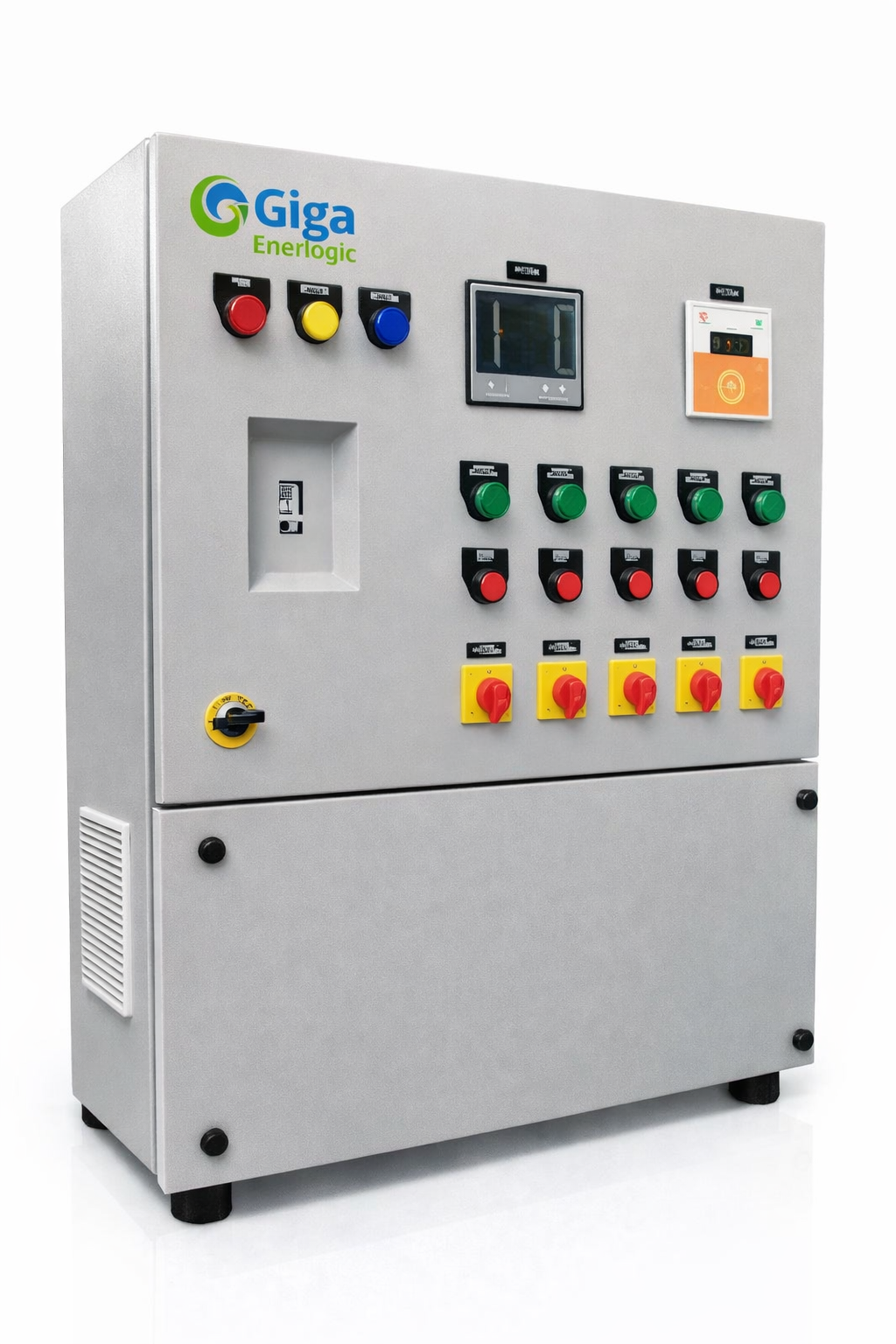

Auto Power Factor Controller
APFC Controller
Product Overview
Key Features
Allows precise power factor configuration from 0.00 to 1.00 to meet system requirements.
User-programmable correction time ranging from 1 to 120 seconds for optimized capacitor switching.
Supports 12 relay outputs for automatic capacitor bank switching.
Ensures capacitor switching at zero voltage crossing, reducing inrush current and increasing component life.
Easy operation using dedicated keys for Up, Down, Save, Mode, and Enter functions.
High Visibility LED Indications
Clear 5-digit display for real-time parameter and error code indication.
Fault conditions are displayed as unique error codes on the 7-segment display for quick diagnosis.
Technical Specifications
Nominal Operating Voltage
415 V [Phase to Phase]
System Type
3 Phase, 4 Wire
User Programmable Power Factor
0.00 – 1.00
User Programmable Correction Time
1 to 120 sec
Current Input
1A / 5A
Reactive Current Setting
0.05 – 1A
Display
5-Digit 7-Segment
Interface
7-Key Keypad
