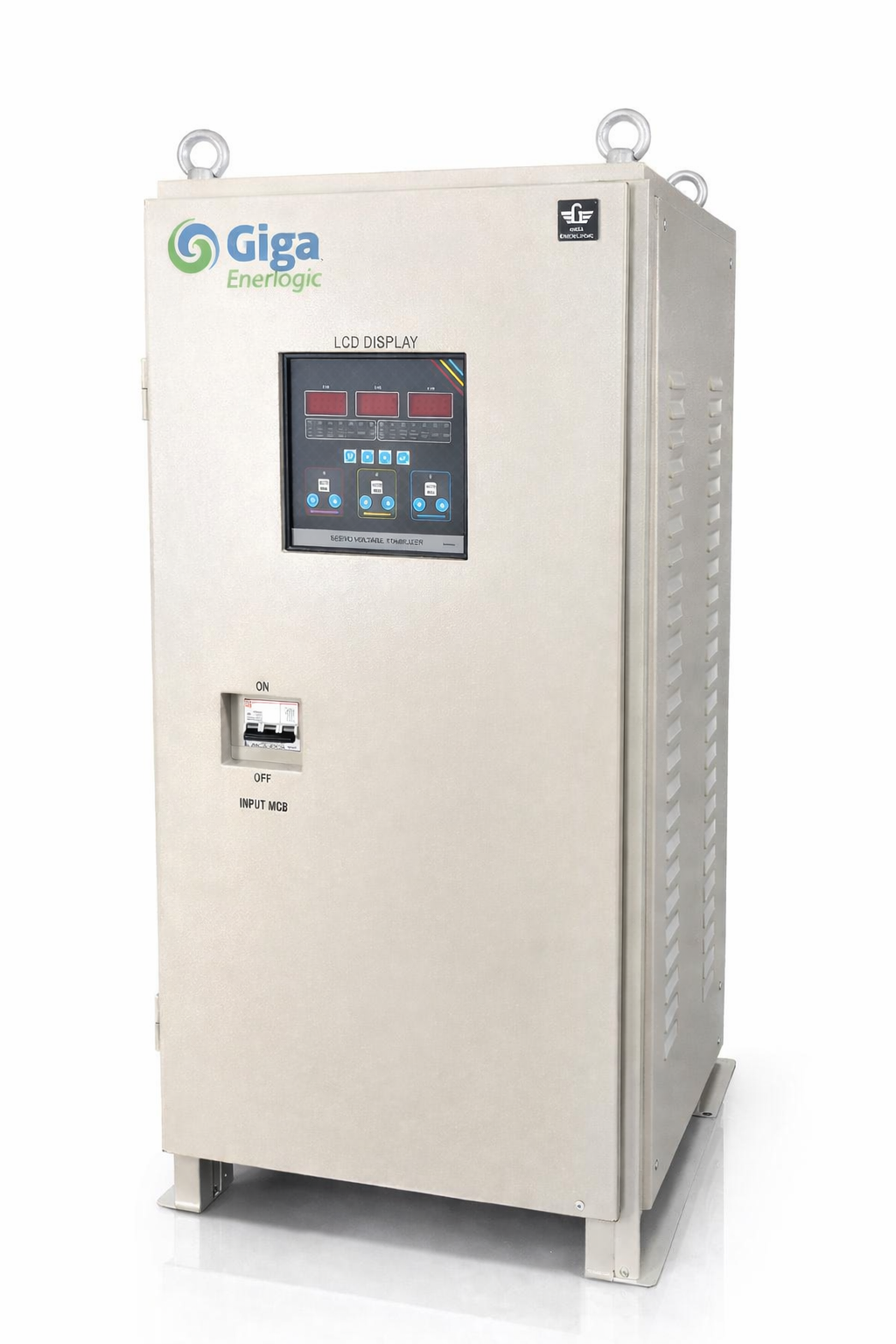

This 3 phase servo voltage stabilizer (1 KVA to 15 KVA) is designed to provide accurate voltage regulation and protect sensitive equipment from voltage fluctuations. Suitable for small to medium industrial and commercial applications.
Three Phase Input - Three Phase Output - 1 KVA TO 15 KVA
Servo Stabilizer
Product Overview
Key Features
Maintains a stable output voltage of 230 VAC ±1%, ensuring safe operation of sensitive single-phase equipment.
Fast response to voltage fluctuations
Compact and energy-efficient design
No waveform distortion, safe for sensitive electronics
Designed for 100% continuous load operation, suitable for long-term usage without overheating.
Technical Specifications
Capacity Range
1 kVA to 15 kVA
Input Supply
Single Phase AC
Output Supply
Single Phase AC
Input Voltage Range
170 – 270 VAC
Output Voltage
230 VAC ±1%
Operating Frequency
50 Hz
Response Time
< 3 milliseconds
Rate of Voltage Correction
15 to 40 V/sec
Efficiency
> 98%
Operating Temperature
0 to 55°C
Duty Cycle
Continuous operation at 100% load
Cooling Method
Forced Air Cooling
Under / Over Voltage Protection
By Relay or Contactor
Overload Protection
Fuse/MCB
Neutral Lift Protection
Optional
EMI / RFI Filters
Optional
Bypass Switch
Provided
Voltmeter
0 300 VAC
