The XP Series 10K Online UPS is engineered for large-scale industrial and mission-critical power protection. With true double-conversion technology, it guarantees uninterrupted, clean power even in extreme grid conditions. Its high efficiency, scalable battery configuration, and advanced communication interfaces make it ideal for data centers, manufacturing plants, and critical process applications.

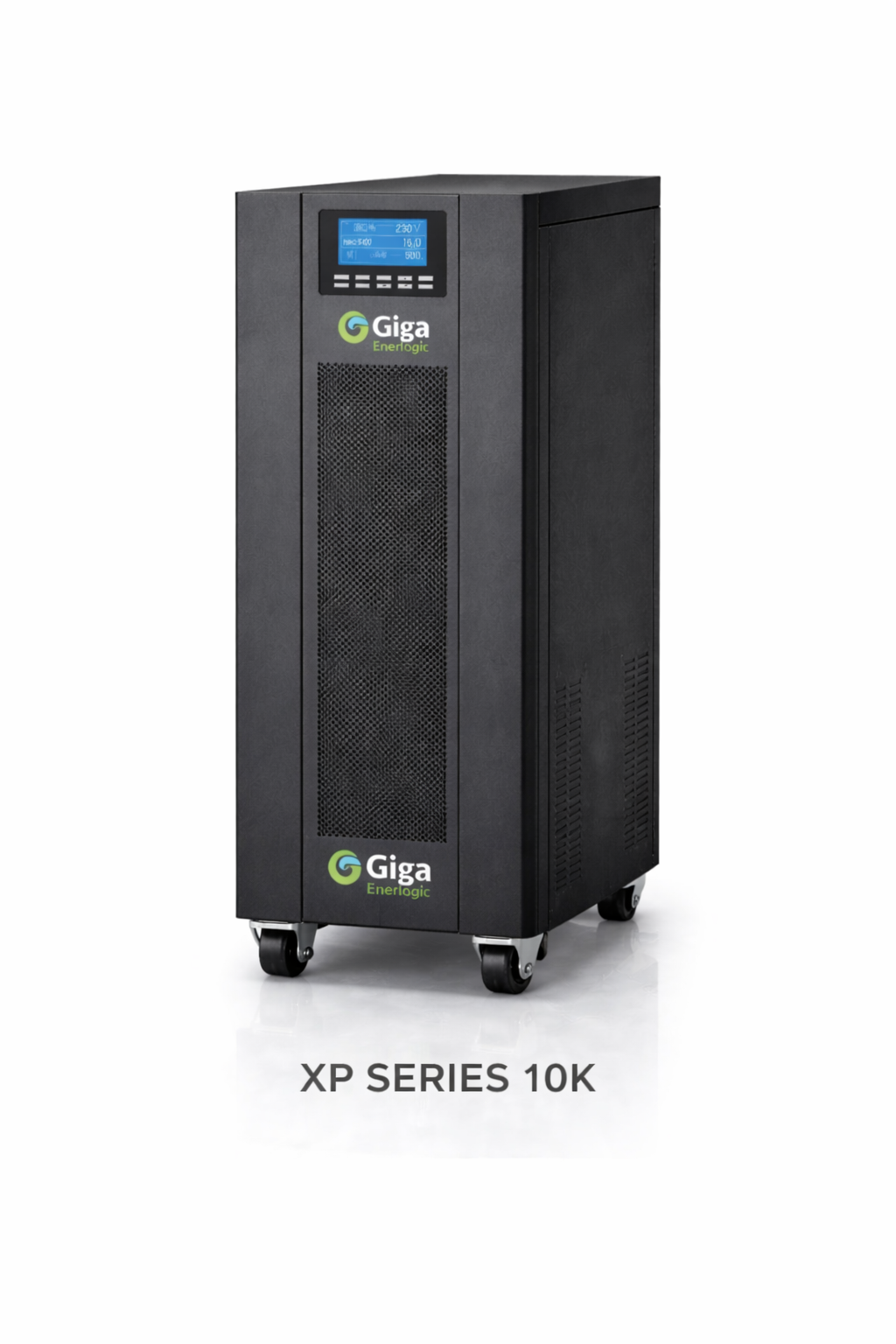

XP Series 10k - L
XP-SERIES ONLINE UPS
Product Overview
Key Features
High-capacity double-conversion online UPS
Excellent voltage and frequency regulation
Scalable battery system for extended backup
Advanced LCD monitoring and alarms
Generator compatible for unstable grids
Low harmonic distortion output
Optional long backup configuration
Technical Specifications
Phase
Single Phase with ground
Capacity
8000VA
Input nominal voltage
208/220/230/240VAC
Input Voltage Range
110-300 VAC (Based on load at 50%), 176-300 VAC (Based on load at 100%)VAC
Input Frequency Range
46~54 Hz OR 56~64 Hz
Input Power Factor
0.99 @ Nominal Voltage (100% load)
Output Voltage
208/220/230/240VAC
Output Voltage Regulation
± 1%
Output Frequency Range
46-54 Hz Or 56-64 Hz
Current Crest Ratio
3:1
Harmonic Distortion
3% THD (Linear Load), 6% THD (Non-linear Load))
Transfer Time (AC to Battery Mode)
Zero
Transfer Time (Inverter to Bypass)
Zero
Waveform
Pure Sinewave
Efficiency (AC Mode)
93%
Efficiency (Battery Mode)
91%
Battery Type
12 V / 9 Ah
Typical Recharge Time
9 hours recover to 90% capacity
Charging Current (max)
1/2A
Charging Voltage
218.4 VDC ± 1%, 273VDC ± 1%
LCD Indicators
Load level, Battery level, AC mode, Battery mode, Bypass mode, Fault Indicators
Net Weight (Standard Model)
66,76kgs
Net Weight (Long Run Model)
16kgs
Humidity
0-95% RH @ 0-40°C (Non-condensing)
Noise Level
Less than 50dB @ 1 Meter
